How to Measure the Jamb Width?

Jamb width is the measurement of the wall thickness that the door unit will be fitting into, this includes any sheetrock or sheathing/siding that is on the outside as well. This is one of the most important things you will need to know when replacing a door unit. If your jamb is too small, the framing or rough opening in the wall may be exposed and if you jamb is too large then it will need to be trimmed and fitted to the wall. If your jamb is not the right size it may also cause problems like the door being unable to close or have a tight close ensuring protection from the outside elements or create a draft.



To measure the door jamb size you may need to remove any trim moulding or siding you have on the door. If you do not remove the trim measure from the inside edges of the trim or moulding, Make sure you are measuring from the visible edges of the jamb to get the correct size.




Typical door jamb sizes are :

  • 4 9/16" for 2x4 frame with ½” drywall
  • 5 1/2" for 2x4 frame with stucco or thick drywall
  • 6 9/16" for 2x6 frame , or block wall

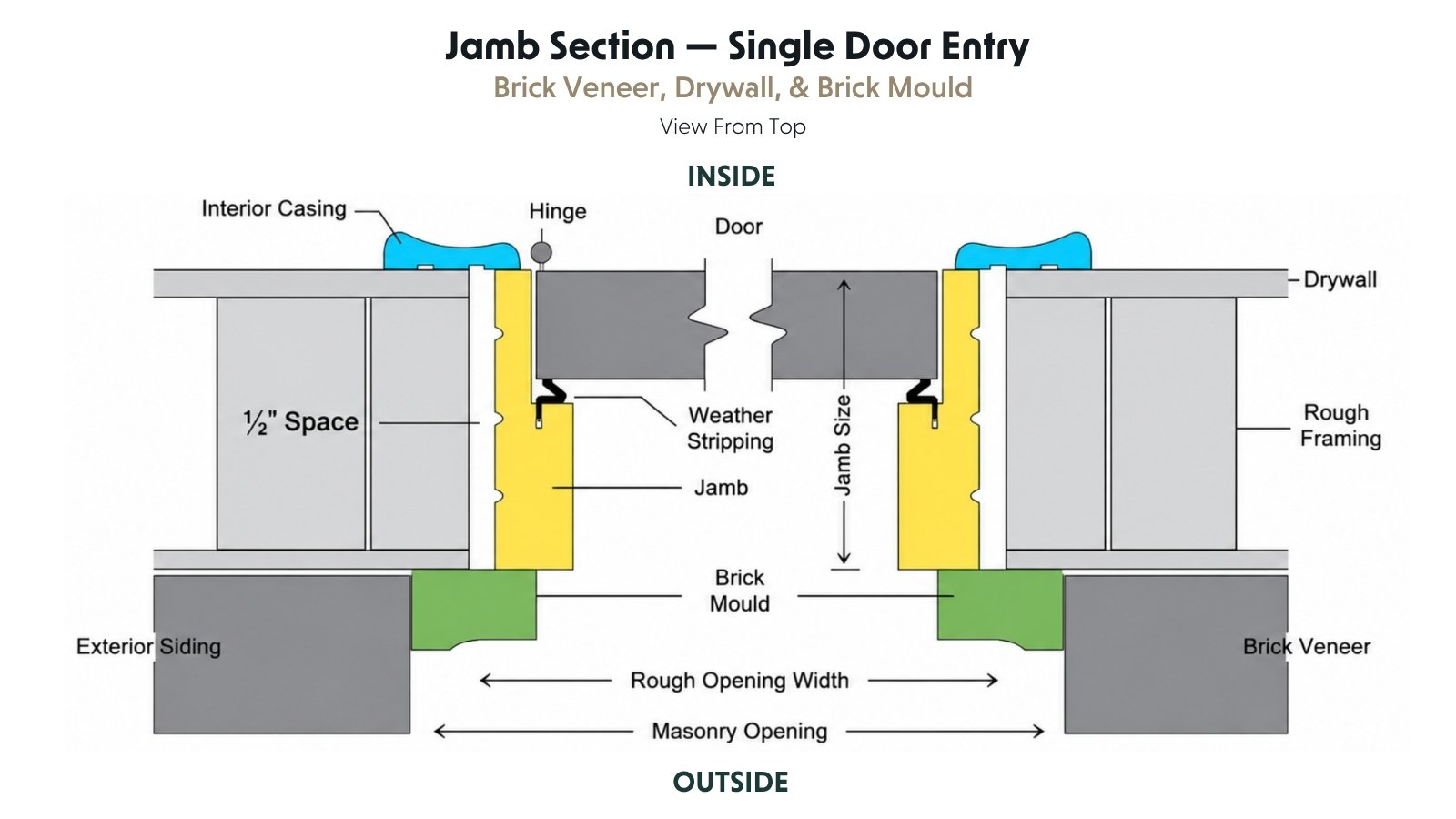

The yellow color is an exterior jamb section!


Here is a typical exterior jamb

Mahogany Exterior Jamb

Composite Jamb

Flat Jamb for Interior Doors

Interior Split Jamb
