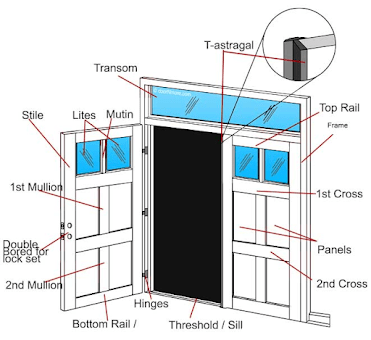

TERMINOLOGY

Brick Molding -A molding used on an exterior door, typically applied to prehung units, put on the outside of the frame as a stop, or to hide brick, siding, stucco or concrete.

Bottom Rail- The bottom portion of the door.

Came,Caming: Metal stripping which is soldered at the joints, used between cut-glass pieces to assemble the pieces into a decorative glass panel. Cames are mostly made of lead, zinc, copper, brass or brass-capped lead.

Casing (trim): Wood paneling or m olding that surrounds the interior edge of a window or door frame. Used to cover the gap between the door frame and wall.

Core: The innermost layer or center section in component construction of the door.

Distressing wood: A texturing technique which makes the wood to look old or worn.

Door-lite : An assembly of a frame and glass panel, or glass window . Many doors have more than one lite or lites.

Door Slab: Only the door, no jamb, hinges, threshold, or door hardware.

Door Stop: L imits the door's opening swing. It is part of the frame and the door rests on it when closed .

Door Unit - A door with a jamb, hinges, and is bored for door hardware. Exterior door units also include casing, brick molding, astragal and weather strips and is pre-hung.

Double Acting Door: Door which is hinged so that it can be opened both inward and outward.

Flush Bolt: A bolt used to on a non active door to keep it stationary. It is flush with the face or edge of the door when retracted.

French Door: a door with glass panes throughout its length.French door could be a pair or not.

Jamb: The vertical wood frame to which a door is hinged to create a door unit. It also allows the door to be installed into a wall.

Mortise & Tenon Joinery: A method of locking or joining/ bonding two pieces of wood together.

Mull Post: The post between the door and sidelite which is created by the door frame.

Multi-Point Locking System: This lock system which is generally 3 or 5 point system. It is controlled by levers in multiple places in the door panel and frame. Used for protection against high pressure winds caused by hurricanes and/or storms, as well as just added security for the entry way.

Panel: The part of the door which is raised above or sunk below the level of the rest of the door to create depth.

Pre -Hung: A full door unit with the door hinged, jamb, frame, sill and moulding.

Prefinished - Products that are stained and sealed at the factory or warehouse before distribution.

Rough Opening – An opening in the wall made by standard framing materials, sized around a pre-hung unit. This is usually 2" taller and 2" wider than the door unit size.

Sidelite: The side panels on either side of the door, they can be filled with glass or wood. Typically there are two, one on each side of the door, or there can be one on either side of the door.

Sill: The bottom or piece of a door. Also known as the threshold and usually come in aluminium or wood.

Stiles: The outer pieces or edges of a door. These and rails form the frame of the door slab.

Tempered Glass: Also known as safety glass, is treated by heating and cooling the glass so when broken it will crumble instead braking into shards.

Transom: A mounted piece of glass or wood which is above the door unit, the come in many different shapes and sizes. This is a decorative piece and some time comes with the door unit.

Trim: The covering over a doorjamb that gives the finished look. this is usually a strip of wood.

Weather Strip: A narrow strip that is flexible which surrounds the door to protect from moisture and air coming in when the door is closed.
