Axis Pivot System
Lead Time:5 Business Days
Concealed Mechanical Pivot System
Axis Pivot System
Concealed mechanical pivot hardware for modern pivot doors.
The Axis Pivot System by US Door & More is a concealed mechanical pivot system designed for clean architectural installation, strong load support, off-center pivot placement, and reliable mechanical movement.
Key Features
Clean pivot function without visual hardware clutter.
Axis keeps the focus on the door and opening while the concealed top-and-bottom hardware provides the mechanical pivot foundation.
Concealed top and bottom hardware
Designed to remain mostly hidden after installation for a cleaner architectural appearance.
Strong load support
Rated up to 500 kg / 1,100 lb, subject to proper installation and project conditions.
Off-center pivot axis
Built for off-center pivot applications and modern pivot-door layouts.
90-degree hold positions
Holds position at every 90 degrees for practical everyday operation.
360-degree opening
Allows full rotation where the opening condition and installation allow.
Engineered for modern residential pivot-door projects.
Axis is a concealed pivot solution for projects that need smooth free movement, clean installation, strong structural support, and a refined architectural presentation.
- +Designed around a minimum door thickness of 45 mm / 1-3/4".
- +Mechanical self-closing function with open-holding behavior.
- +Specified for residential pivot-door applications.
Technical Details
The core hardware set.

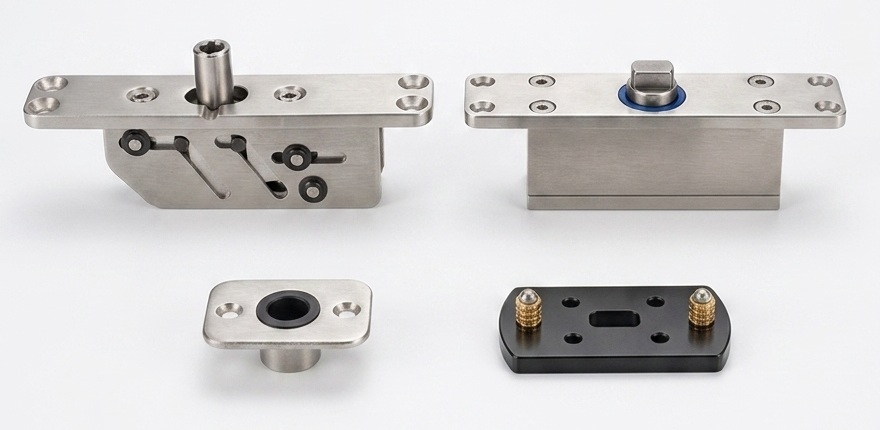

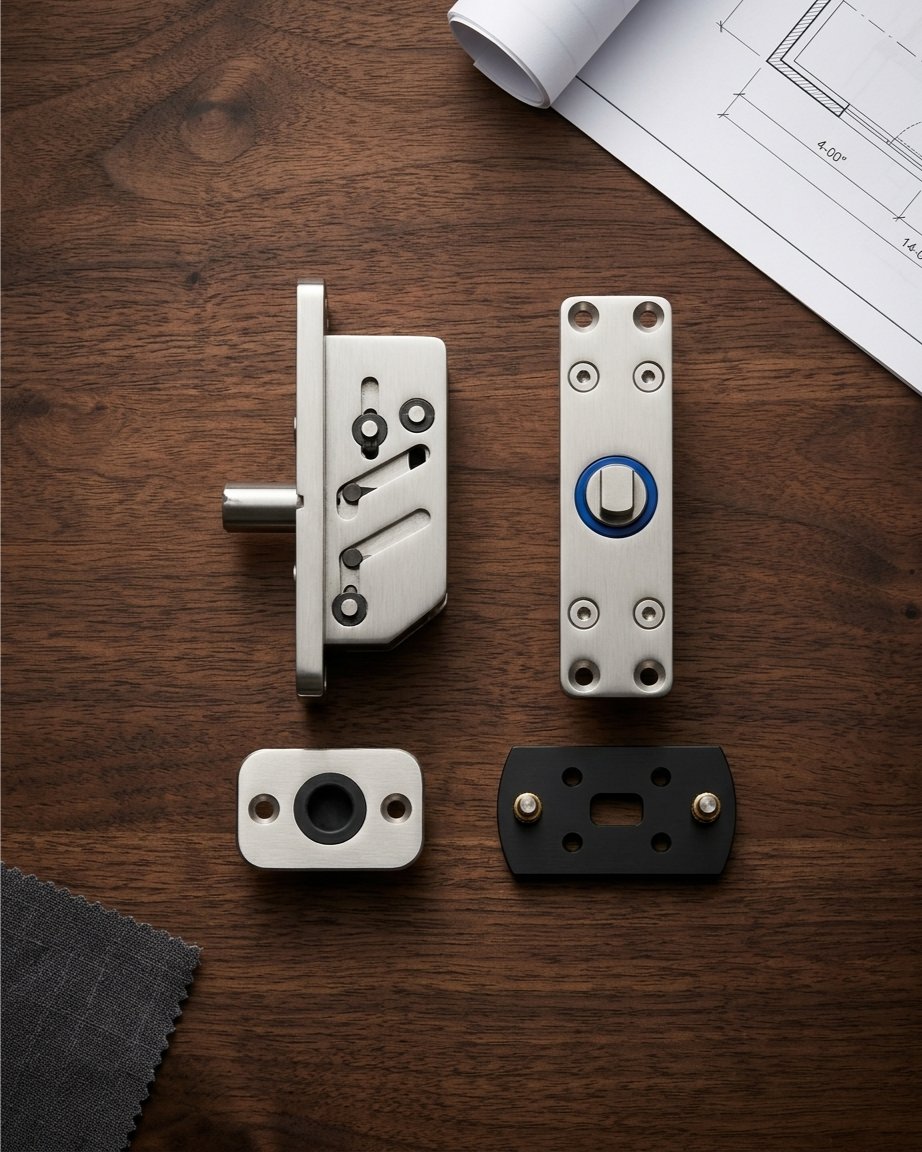

The system includes the main top and bottom pivot assemblies, plus the floor-side socket and bottom mounting base plate.
Technical Details

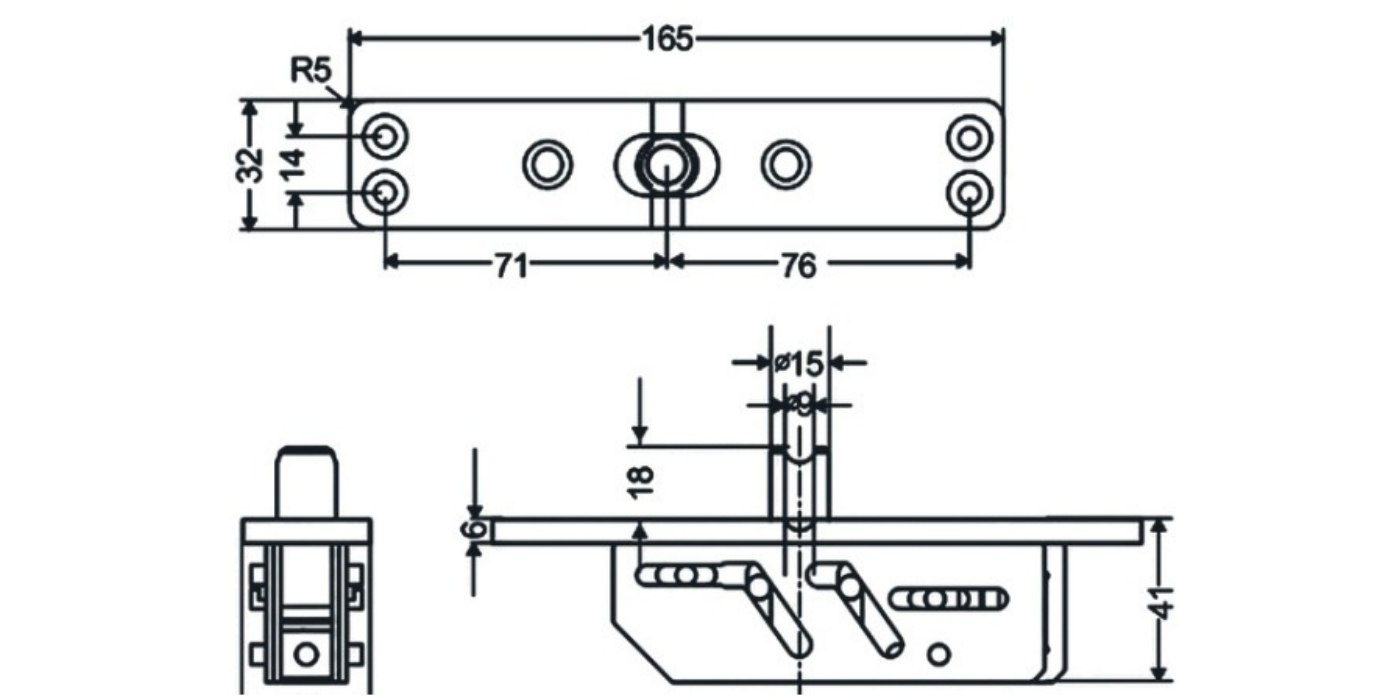

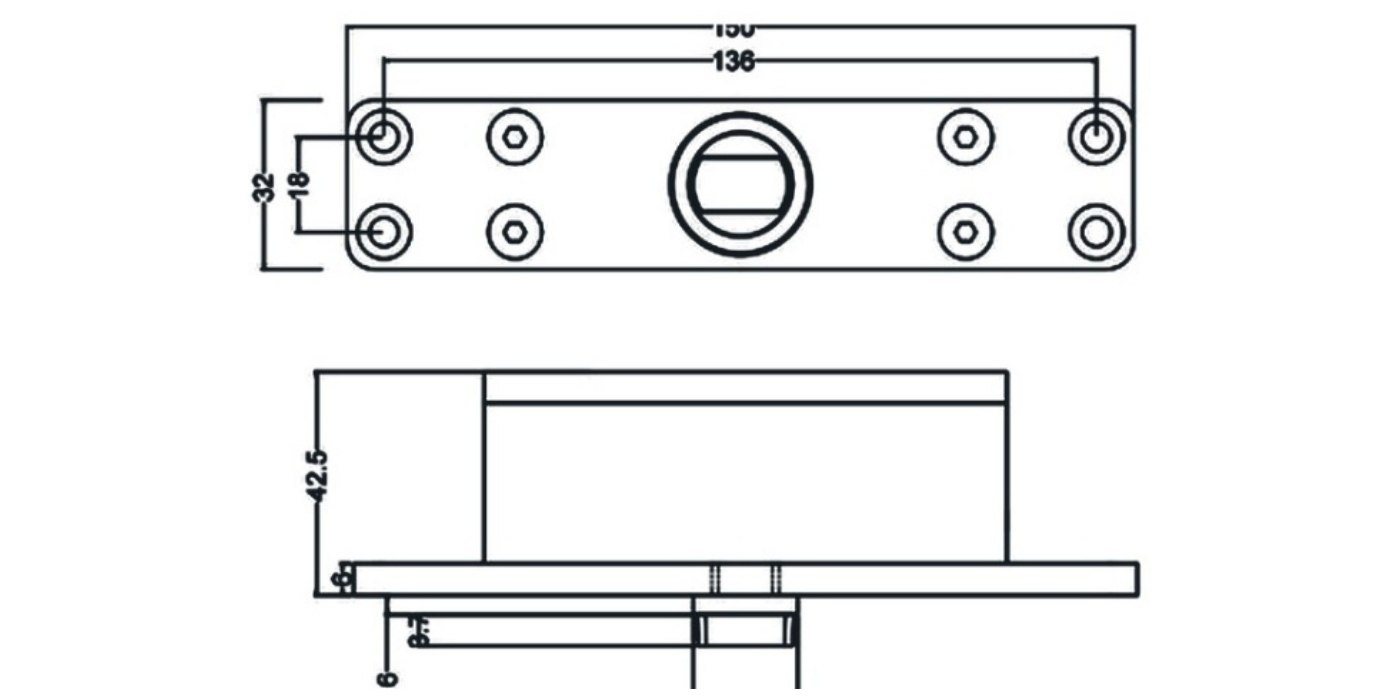

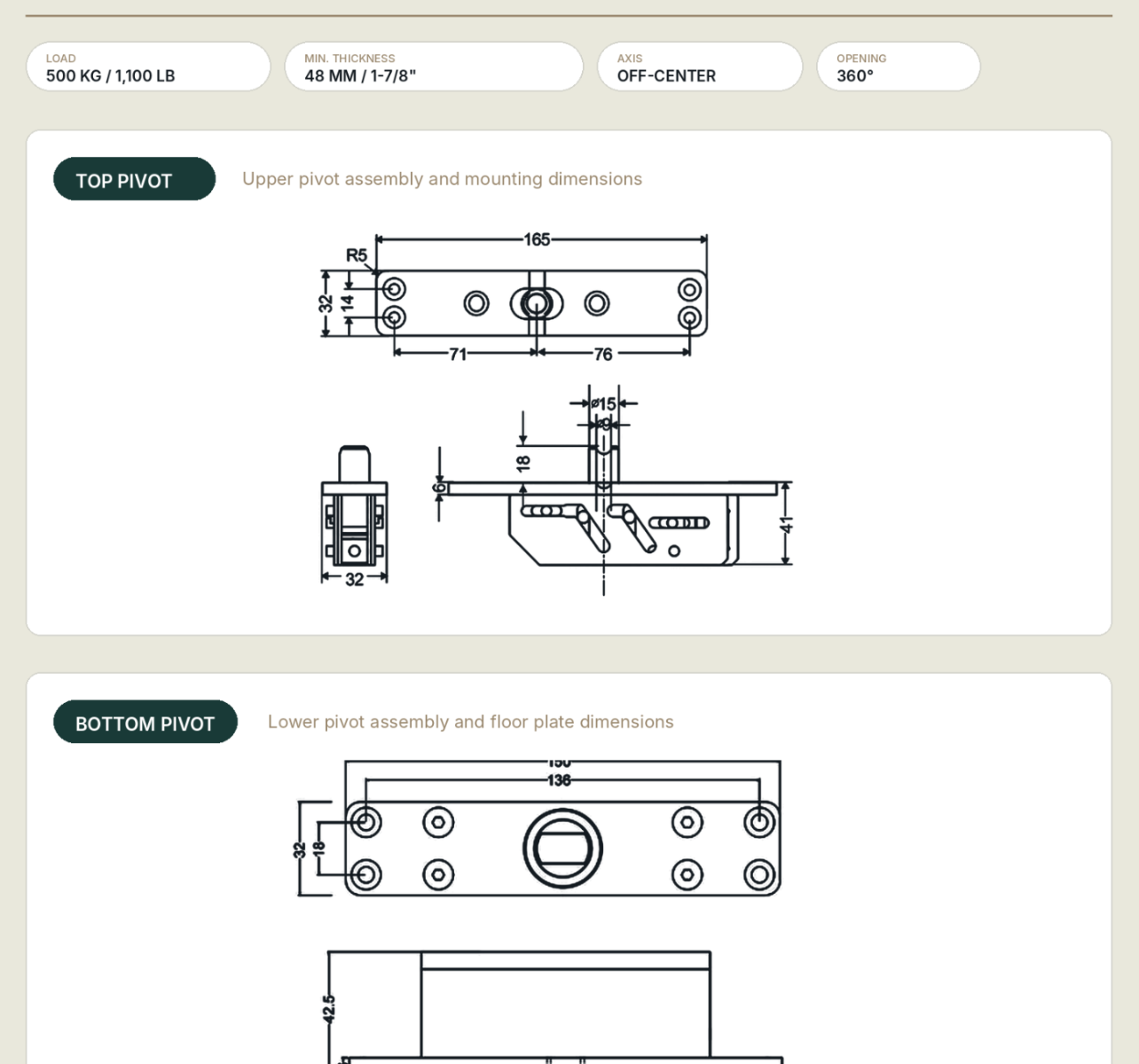

Mounting dimensions and pivot geometry.
Dimensions are shown in millimeters. Final installation must be verified against the door thickness, floor condition, and project-specific opening requirements.
Specifications
| Product Name | Axis Pivot System |
| System Type | Concealed Mechanical Pivot System |
| Application | Pivot Doors |
| Material | SUS304 Stainless Steel + Aluminum |
| Load Capacity | Up to 500 kg / approx. 1,100 lb |
| Minimum Door Thickness | 45 mm / approx. 1-3/4" |
| Pivot Configuration | Off-Center Pivot Axis |
| Hold Positions | Every 90 Degrees |
| Maximum Opening Angle | 360 Degrees |
| Closing Function | Mechanical Self-Close |
| Buffer / Hold Function | Open-Holding |
| Recommended Use | Residential pivot-door applications requiring concealed pivot movement |
Site-specific fasteners, sealants, floor preparation materials, installation labor, and project-specific accessories are not included unless specified.
Product Views
Hardware images show at natural proportions.
Product photography is displayed without forced image stretching. Each photo keeps its original aspect ratio for a more accurate hardware presentation.

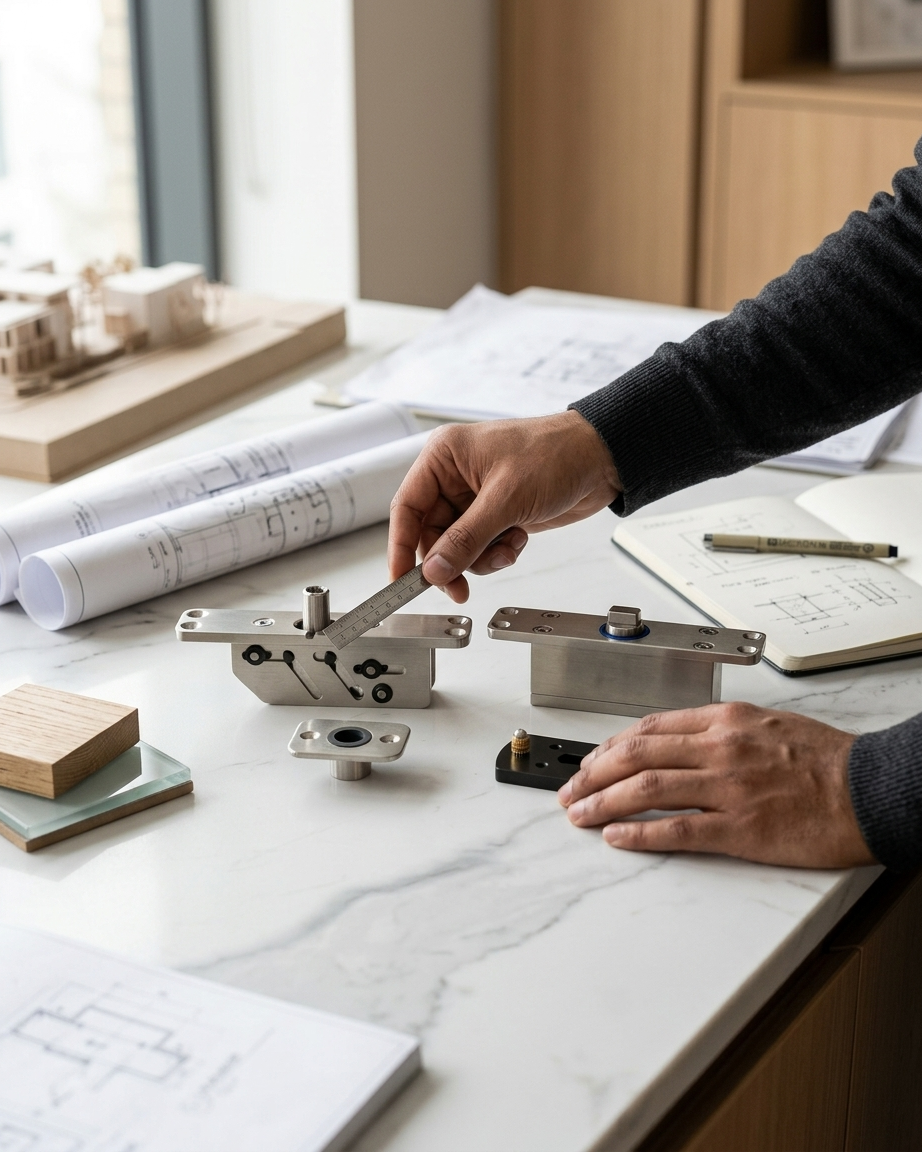

Axis Pivot System
Concealed Mechanical Pivot System
Product Overview
The Axis Pivot System by US Door & More is a concealed mechanical pivot system designed for modern pivot doors. Built with SUS304 stainless steel and aluminum components, it provides strong load support, clean architectural installation, off-center pivot placement, and smooth mechanical movement.
Capacity
1,100 lb
Thickness
1-3/4"
Center
Key Features
- ● Concealed top and bottom pivot hardware
- ● Free movement with mechanical self-close
- ● Open-holding behavior at every 90°
- ● Off-center pivot axis configuration
- ● Brushed metal hardware appearance
Specifications
Included Components

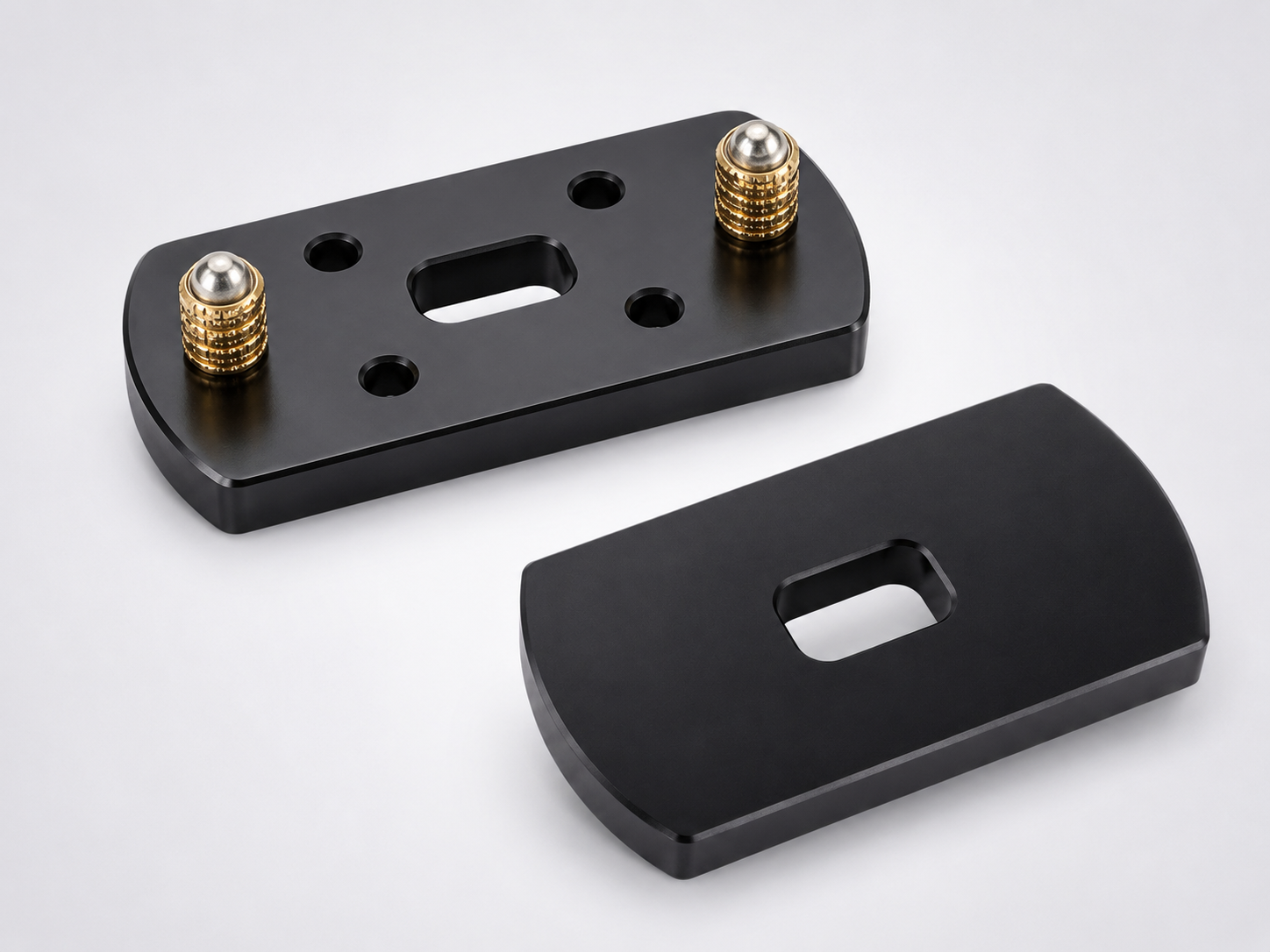

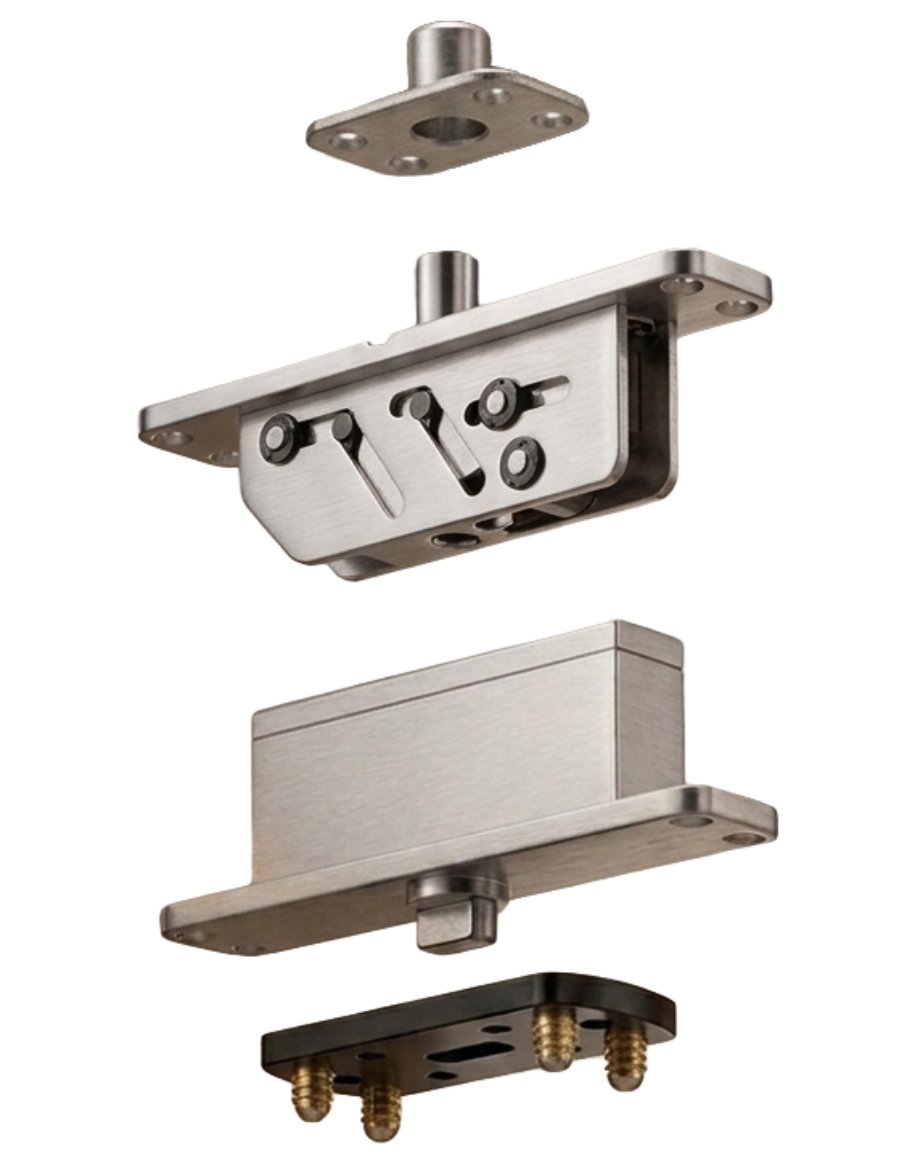

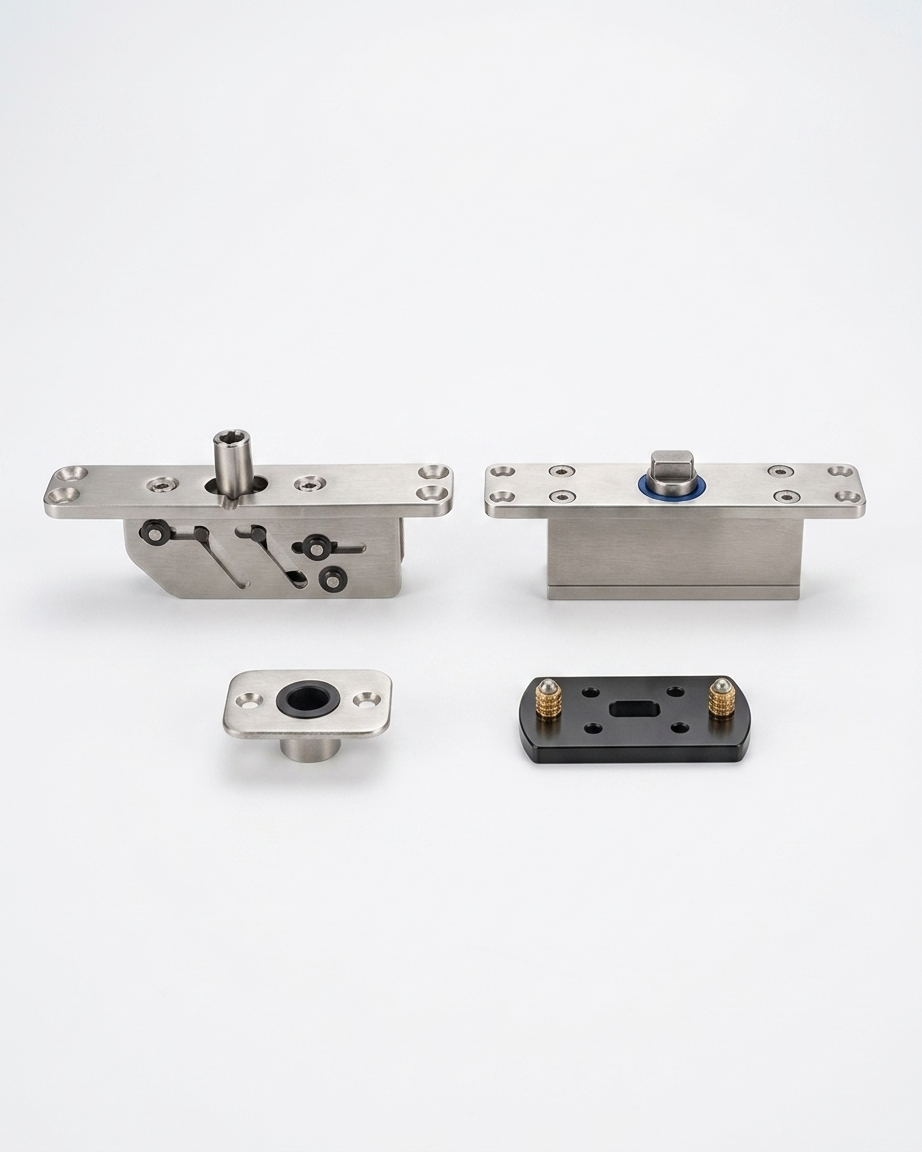

Top Pivot Assembly • Bottom Pivot Assembly • Floor Socket / Pivot Plate • Bottom Mounting Base Plate
Visible finishes and component appearance may vary slightly by production batch. Installation requirements should always be verified before final fabrication.
Specify Axis for clean, modern pivot-door applications.
Use Axis where the project calls for concealed mechanical pivot function, strong load support, and a clean architectural hardware presentation.
Specify Axis for clean, modern pivot-door applications.
Use Axis where the project calls for concealed mechanical pivot function, strong load support, and a clean architectural hardware presentation.
| SKU | UDM-AXIS-01 |
|---|---|
| Brand | US Door & More Inc |
| Function | Pivot Hinges |
| Materials | Stainless Steel / Aluminum |
| Finishes | Brushed Metal |
| Hinge Function | Pivot Hinges |
| Condition | NEW |
| Lead Time (business days) | 5 Business Days |
| Hold Positions | 90 Degrees |
| Closing Mechanism | Mechanical Self-Close |
| Min Door Thickness | 1-3/4" (45 mm) |
| Max Weight Capacity | 1,100 lbs (500 kg) |
| Pick Up Location | Tampa, FL, 33634 |
