Panorama Full Lite Impact-Rated Pivot Door
Lead Time:~40 days; some options may extend it.
Minimal Design. Maximum Impact.

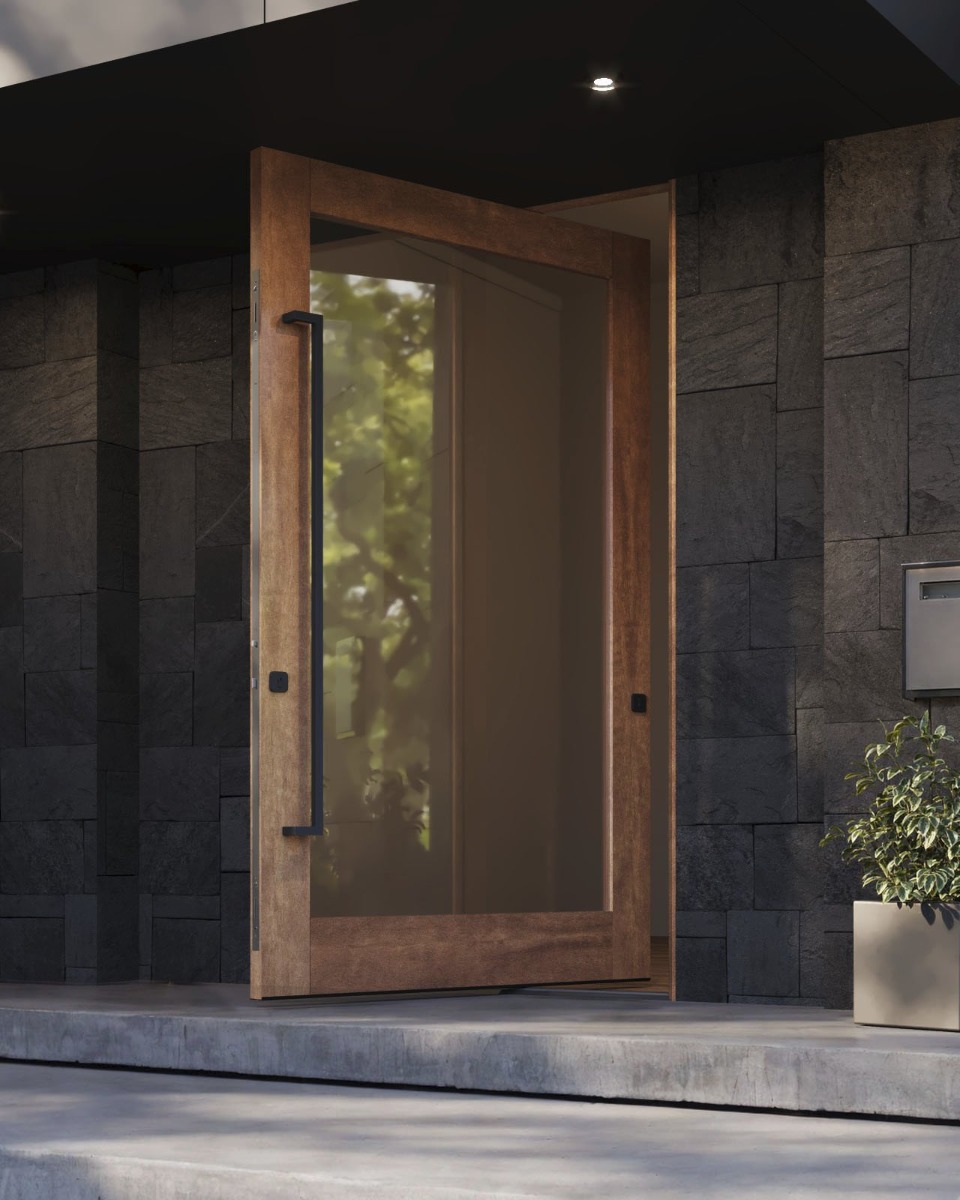

Redefine your entryway with the Panorama Full Lite Contemporary Modern Shaker Pivot Door—a sleek, high-performance solution that blends minimalist beauty with structural integrity. Designed for those with an eye for detail, this impact-rated door is both visually striking and technically robust.
Key Features
Contemporary Full-Lite Design
Clean lines and a full-glass pane deliver an architectural statement while maintaining privacy through laminated, impact-rated glazing. The minimalist shaker frame made of Meranti hardwood adds warmth and refinement.Secure, Minimalist Locking System
This door features a key-operated locking system on both sides—no handle required—for a clean, ultra-modern profile. The system engages with heavy-duty round bolts and swing hooks, locking at 3 to 4 points per side depending on door height. Sleek in form, uncompromising in function.Premium Hardware Options
Includes FritsJurgens pivot hardware and multipoint locking from HOPPE. For added elegance, the door can be paired with an optional offset pull bar to suit your architectural vision.Custom Fit & Finish
Available up to 73.88" wide by 122" high, and offered prefinished by the factory for a flawless, ready-to-install experience. Choose from a curated selection of wood tones to match your project.Impact-Rated & Florida Code Compliant
Certified under the 8th Edition Florida Building Code (2023) and approved for use outside the High Velocity Hurricane Zone (HVHZ). Tested to missile level “D” with no additional shuttering required.
Limits of Use
Approved for Use in HVHZ: No
- Florida Product Approval number (FL # FL47453)
Approved for Use Outside HVHZ: Yes
Impact Resistant: Yes
Design Pressure: See INST 47453.1 for full structural specifications and anchoring requirements.
The Just-Right Door for Elevated Living
At US Door & More, we create doors that are stylish, reliable, and accessible—designed to turn houses into homes. The Panorama Pivot Door is an ideal choice for those who value craftsmanship, security, and understated design sophistication.
| SKU | PANORAMA-IMPACT_1 |
|---|---|
| Brand | US Door & More Inc |
| Overhang Requirements | The overhang must extend at least as far as the distance from the door's base to the underside of the overhang to prevent direct sunlight exposure, with deeper overhangs required for orientations where sunlight may reach the door; refer to warranty |
| Sticking Profile | SHAKER |
| Manufacturer Collections | Stylish Pivots |
| Condition | NEW |
| Door System | Pivot |
| Application | Exterior |
| Grain-Texture-Pattern | Mahogany |
| Lead Time (business days) | ~40 days; some options may extend it. |
| Material | Wood |
| Approvals | WBD Windload Resistant, Impact Doors, WBD Windload Resistant |
| Unit Size | 41.25 x 80, 41.25 x 86, 41.25 x 110, 41.25 x 121, 41.5 x 80, 41.5 x 82, 41.5 x 86, 41.5 x 98, 41.5 x 110, 41.5 x 121, 43.25 x 80, 43.25 x 86, 43.25 x 110, 43.25 x 121, 43.5 x 80, 43.5 x 82, 43.5 x 86, 43.5 x 98, 43.5 x 110, 43.5 x 121, 43.75 x 80, 43.75 x 82, 43.75 x 86, 43.75 x 98, 43.75 x 110, 43.75 x 121, 45.25 x 80, 45.25 x 86, 45.25 x 110, 45.25 x 121, 45.5 x 80, 45.5 x 82, 45.5 x 86, 45.5 x 98, 45.5 x 110, 45.5 x 121, 47.25 x 80, 47.25 x 86, 47.25 x 110, 47.25 x 121, 47.5 x 80, 47.5 x 82, 47.5 x 86, 47.5 x 98, 47.5 x 110, 47.5 x 121, 49.25 x 80, 49.25 x 86, 49.25 x 110, 49.25 x 121, 49.5 x 80, 49.5 x 82, 49.5 x 86, 49.5 x 98, 49.5 x 110, 49.5 x 121, 49.75 x 80, 49.75 x 82, 49.75 x 86, 49.75 x 98, 49.75 x 110, 49.75 x 121, 50.5 x 80, 50.5 x 86, 50.5 x 110, 50.5 x 121, 51.25 x 80, 51.25 x 86, 51.25 x 110, 51.25 x 121, 51.5 x 80, 51.5 x 82, 51.5 x 86, 51.5 x 98, 51.5 x 110, 51.5 x 121, 53.25 x 80, 53.25 x 86, 53.25 x 110, 53.25 x 121, 53.5 x 80, 53.5 x 82, 53.5 x 86, 53.5 x 98, 53.5 x 110, 53.5 x 121, 54 x 80, 54 x 82, 54 x 86, 54 x 98, 54 x 110, 54 x 121, 55.25 x 80, 55.25 x 82, 55.25 x 86, 55.25 x 98, 55.25 x 110, 55.25 x 121, 55.5 x 80, 55.5 x 82, 55.5 x 86, 55.5 x 98, 55.5 x 110, 55.5 x 121, 57.25 x 80, 57.25 x 82, 57.25 x 86, 57.25 x 98, 57.25 x 110, 57.25 x 121, 57.5 x 80, 57.5 x 82, 57.5 x 86, 57.5 x 98, 57.5 x 110, 57.5 x 121, 58 x 80, 58 x 82, 58 x 86, 58 x 98, 58 x 110, 58 x 121, 58.5 x 80, 58.5 x 86, 58.5 x 110, 58.5 x 121, 59.25 x 80, 59.25 x 82, 59.25 x 86, 59.25 x 98, 59.25 x 110, 59.25 x 121, 59.5 x 80, 59.5 x 82, 59.5 x 86, 59.5 x 98, 59.5 x 110, 59.5 x 121, 61.25 x 80, 61.25 x 82, 61.25 x 86, 61.25 x 98, 61.25 x 110, 61.25 x 121, 61.5 x 80, 61.5 x 82, 61.5 x 86, 61.5 x 98, 61.5 x 110, 61.5 x 121, 62 x 80, 62 x 82, 62 x 86, 62 x 98, 62 x 110, 62 x 121, 62.5 x 80, 62.5 x 86, 62.5 x 110, 62.5 x 121, 63.25 x 80, 63.25 x 82, 63.25 x 86, 63.25 x 98, 63.25 x 110, 63.25 x 121, 63.5 x 80, 63.5 x 82, 63.5 x 86, 63.5 x 98, 63.5 x 110, 63.5 x 121, 65.25 x 80, 65.25 x 82, 65.25 x 86, 65.25 x 98, 65.25 x 110, 65.25 x 121, 65.5 x 80, 65.5 x 82, 65.5 x 86, 65.5 x 98, 65.5 x 110, 65.5 x 121, 66 x 80, 66 x 82, 66 x 86, 66 x 98, 66 x 110, 66 x 121, 66.5 x 80, 66.5 x 86, 66.5 x 110, 66.5 x 121, 67.25 x 80, 67.25 x 82, 67.25 x 86, 67.25 x 98, 67.25 x 110, 67.25 x 121, 67.5 x 80, 67.5 x 82, 67.5 x 86, 67.5 x 98, 67.5 x 110, 67.5 x 121, 69.25 x 80, 69.25 x 82, 69.25 x 86, 69.25 x 98, 69.25 x 110, 69.25 x 121, 69.5 x 80, 69.5 x 82, 69.5 x 86, 69.5 x 98, 69.5 x 110, 69.5 x 121, 70 x 80, 70 x 82, 70 x 86, 70 x 98, 70 x 110, 70 x 121, 70.5 x 80, 70.5 x 82, 70.5 x 86, 70.5 x 98, 70.5 x 110, 70.5 x 121, 71.25 x 80, 71.25 x 82, 71.25 x 86, 71.25 x 98, 71.25 x 110, 71.25 x 121, 71.5 x 80, 71.5 x 82, 71.5 x 86, 71.5 x 98, 71.5 x 110, 71.5 x 121, 73.25 x 80, 73.25 x 82, 73.25 x 86, 73.25 x 98, 73.25 x 110, 73.25 x 121, 74 x 80, 74 x 82, 74 x 86, 74 x 98, 74 x 110, 74 x 121, 74.5 x 80, 74.5 x 110, 74.5 x 121, 43.75 x 122, 49.75 x 82, 49.75 x 122, 61.75 x 82, 61.75 x 86, 61.75 x 98, 61.75 x 110, 61.75 x 122, 72.75 x 82, 72.75 x 86, 72.75 x 98, 72.75 x 110, 72.75 x 122 |
| Thickness (inch) | 2-1/4 |
| Door Glass Type | Double Glazed |
| Glass Thickness | 1 inch |
| Glass Texture | Bronze, Clear, Frosted, Pattern 62, Rain -Highest Obscurity-[8-9], Rainglass |
| Door Glass Features | Insulated (IG), Tempered/Safety, Insulated (IG) |
| Pick Up Location | Tampa, FL, 33634 |
