Comprehensive Guide to Lockset Choices: From Standard to Specialty Systems
- By Aysenur Altug
- Apr 1, 2024
1- STANDARD TUBULAR EXTERIOR LOCKSETÂ
Regular exterior locksets strike a balance between security and convenience, making them suitable for most residential and commercial exterior doors. There are two bores drilled into the lock rail and the locking mechanism is inserted through them. The regular exterior locking system only locks via the dead bolt on the top.
- Advantages: They provide solid security without breaking the bank.
- Disadvantages: They might not offer the same level of security as specialized high-security locksets.
- Why to Choose: Choose regular locksets for standard doors in homes and businesses, when moderate security is important.
There are two distinct 'Door Bore Configurations' for Standard Tubular Exterior Lockset ; Single Bore and Double Bore
SINGLE BORE
- Function: A single bore is a single hole (bore) drilled through a door, typically intended for the installation of a knob or lever.
- Purpose: It is utilized for interior doors and areas where cost-effectiveness and basic security are the primary considerations.
DOUBLE BORE
- Function: A double bore consists of two holes (bores) drilled through a door—one for a knob or lever and another for a deadbolt.
- Purpose: It accommodates locksets that require both a knob or lever and a deadbolt, enhancing security, especially for exterior doors.

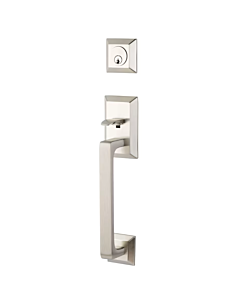

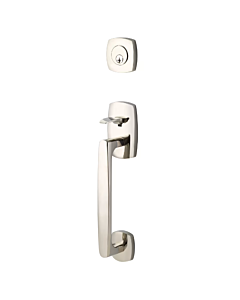

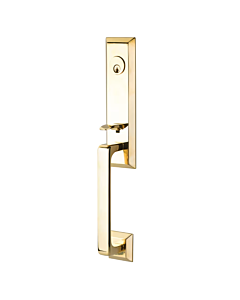

Tubular Handles
2- NARROW TRIM EXTERIOR LOCKSET
1- STRETTO LOCKSET
The Stretto lockset is a sleek, narrow trim lockset perfect for modern door designs in homes and commercial spaces. It offers a unique narrow trim solution, requiring specific door preparation, and comes in two sizes: 1-1/2" x 11" or 2" x 10", suitable for both keyed and non-keyed uses.
-
Advantages: The Stretto lockset boasts a sleek, modern design ideal for narrow-profile doors. It's user-friendly, space-efficient, and cost-effective.
Disadvantages: Its basic security features are not suitable for high-risk areas.
Why to Choose: Choose Stretto for a contemporary, space-saving, and budget-friendly door lock solution.
- Narrow 1-1/4" Door Preps, 3-3/8" Center-to-Center Hole Spacing
- Supplied with 28 Degree Latch
- Standard backset is 2-3/8" backset. Specify 2-3/4" backset if required.
- Handing required for Leverset
The minimum stile dimension required for using that lockset type is 4 inches.
Stretto Handles
2 -SINGLE POINT FOR NARROW TRIM PROFILE

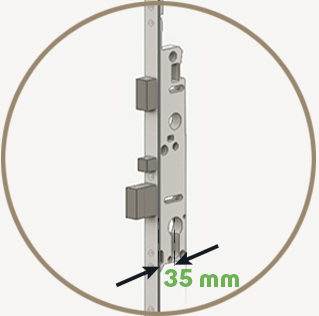

A narrow trim lockset features a discreet single-point locking system and a 35 mm backset, ensuring high security and aesthetic integration for modern doors. This solution combines security with style for narrow trim exterior doors.
Advantages: Single Point Locks are ideal for doors with limited space, offering a cost-effective, easy-to-install, and low-maintenance solution.
Disadvantages: These locks provide basic security, making them less suitable for high-risk areas. They also lack advanced features like keyless entry.
Why to Choose: Opt for Single Point Locks for simple, space-efficient security on narrow-profile doors where basic protection suffices.
Hardware Compatibility:Â
Narrow trim lockset with a single-point locking system and 35 mm backset is fully compatible with Hoppe Dallas hardware. This ensures a seamless fit for modern exterior doors, blending security with a sleek design.
3- PANOLOCK ( MULTI POINT LOCKING MECHANISM )
Panolock System: Panelock is a multi-point locking system, which means it has multiple locking points along the edge of the door instead of just a single deadbolt. Typically, it includes three locking points: one at the deadbolt position and two additional ones at upper and lower points on the door.
- Enhanced Security: The locking points extend into the door frame, providing strong resistance against forced entry.
- Smooth Operation: A single key turn engages or disengages all locking points, simplifying the locking process.
- Low Operation Force: Features like rollers and an adjustable strike plate ensure the lock operates smoothly, requiring minimal effort, even with door-frame misalignments.
- Lower Operation Force and Rollers: Panelock's design incorporates rollers and an adjustable strike plate for smooth operation, even with door-frame misalignment. The low operation force ensures easy locking and unlocking, beneficial for years of regular use.
Hardware Compatibility: From knobs and levers to thumbpress mechanisms, the PanoLock is versatile and works seamlessly with a wide range of off-the-shelf hardware, including electronic deadbolts.
4- 5 POINT LOCKING MECHANISM
The 5 Point Lock System is the peak of our multipoint locks, known for its unmatched strength and extensive security features. It's expertly crafted to ensure the highest door security, maintaining both horizontal and vertical integrity.
Multi-Point Locking System:
The 5 Point Lock system boasts multiple locking points distributed along the door's edge. These points include a deadbolt position, top extension points, and bottom roundbolt points. This multi-point design significantly reinforces door security, making it exceptionally challenging for unauthorized entry.
Enhanced Security: Five deep-anchoring points in the door frame provide robust resistance against forced entry.
Smooth Operation: A single key turn activates or deactivates all locking points, allowing for quick and hassle-free use.
Lower Operation Force: Features like rollers and an adjustable strike plate ensure the lock operates smoothly, requiring minimal effort even with door-frame misalignment.
Enhanced Weather Sealing:
The 5 Point Lock system's design incorporates various locking configurations, including tongue locks, swing hooks, round bolts, rollers, and shoot bolts. Each of these components contributes to improved weather sealing. The system is adept at keeping out the elements, ensuring your home remains comfortable and protected from external weather conditions.
Â
Technical Specifications and Compatibility:
Â
The 5 Point Lock System is a top-notch security feature for doors, offering great protection and convenience. It works well with doors that have a Euro Profile Cylinder lock, commonly used in homes. This system is unique because it locks the door at five different points, making it very secure against break-ins.
Gear-Based Mechanism: The system's efficiency and strength are further bolstered by a gear-based locking mechanism, ensuring precise engagement and enduring reliability.
Compatible with Euro Profile Cylinder: Ensures high security for active doors and allows for rekeying with a Schlage® Keyway.
Backset Variability: With options for 35 mm and 60 mm backsets, the system accommodates various door thicknesses and installation preferences, offering flexibility in application.
-
Â
- Easy Setup: It's designed to be easy to install. The lock cylinder should be placed 3 5/8" below the handle, as shown in the specific "DOOR CONFIGURATION #5" mentioned on the Emtek website.
- Hardware Compatibility: The 5 Point Lock System is designed to work with various hardware styles using adapters, ensuring a wide range of door handles can fit seamlessly. It's important to note that for some handle options, a minimum 60 mm backset is required. This is to make sure that the lock maintains its high level of security across different door designs and handle types.
- Â
5- THE KEY-OPERATED 3-POINT LOCK :
For those prioritizing minimalism in door hardware without compromising security, the Key-Operated 3-Point Lock System is the ideal choice. This system combines sleek design with several high-performance features:
- Minimalist Hardware Design: Perfect for individuals seeking a clean and unobtrusive look on their doors while maintaining high security.
- Multi-Point Locking: Operates with three locking points along the door's edge — one at the deadbolt and two additional points at the top and bottom, enhancing door security.
Enhanced Security: The locking points extend into the frame, offering solid resistance against forced entry, thereby significantly improving the protection of your property.
Smooth Operation: A single key turn controls all three bolts, ensuring ease of use. Its design, including rollers and an adjustable strike plate, guarantees smooth locking and unlocking.
Hardware Compatibility: Integrates effortlessly with various hardware styles using appropriate adapters, allowing customization according to your door and hardware preferences.
Integration with Smart Home Technology:Â
The Key-Operated 3-Point Lock System integrates with smart home tech, specifically the Tedee smart lock, for remote control of all locking points. This feature enhances security and convenience, allowing efficient property management from anywhere, showing its adaptability to modern living.
6- THE DOOR CATCH MECHANISM- DEADBOLT HYBRID LOCK SYSTEM
The Door Catch Mechanism-Deadbolt Hybrid Lock System combines minimalist elegance with solid security. It integrates door catches (roller or ball types) with a central deadbolt, offering robust protection with a contemporary design. Ideal for those valuing both aesthetics and security.
Detailed Features:
- Sleek Design: The system is characterized by its minimalist visibility, making it a perfect match for modern doors where a clutter-free facade is desired.
- Versatility in Catch Mechanism: It accommodates both roller and ball catch mechanisms, which are key to ensuring the door remains gently closed without the necessity for locking, thereby avoiding unintended openings.
- Robust Central Deadbolt: At its core, the system employs a conventional deadbolt, serving as the main security feature. This component ensures that the door's security is not sacrificed, despite the minimalist approach.
- Cost Efficiency: By merging simplicity with functionality, the system presents an economical option for those seeking the sophistication of high-end locking mechanisms without their hefty price tag. It strikes a perfect balance between affordability and stylish design.
- Security Plates Adaptability: Essential to the system are the security plates on the door frame, which work in tandem with the catch mechanism to provide stability and prevent the door from being easily opened.
- Flexible Handle Design: Recognizing the importance of aesthetic customization, the system allows for a variety of handle designs. This flexibility empowers users to select hardware that complements their personal style and the architectural essence of their space.
-
Integration with Smart Home Technology:Â
The Key-Operated 3-Point Lock System integrates with smart home tech, specifically the Tedee smart lock, for remote control of all locking points. This feature enhances security and convenience, allowing efficient property management from anywhere, showing its adaptability to modern living.
ROLLER CATCH
Roller catches feature a spring-loaded cylindrical roller that engages with a strike plate when the door is closed. The adjustable tension on the roller ensures smooth and silent door closure.
HEAVY DUTY ROLLER CATCH
Heavy-duty roller catches, designed for intensive use, feature a stronger spring and durable roller, ideal for heavy doors and high-traffic areas. Their adjustable tension ensures smooth, silent operation, making them suitable for both commercial and high-use residential settings due to their reliability and longevity.
Door Pulls

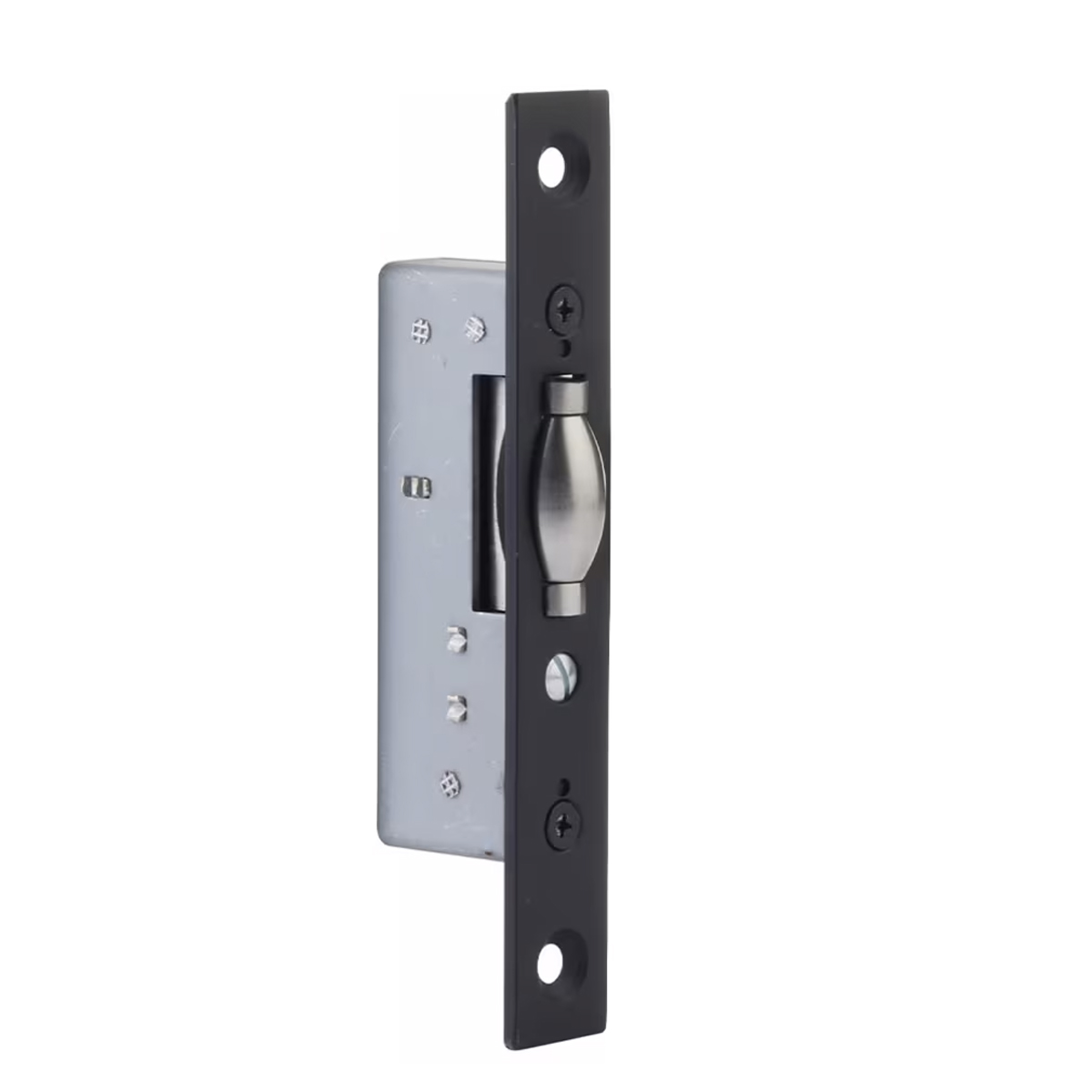

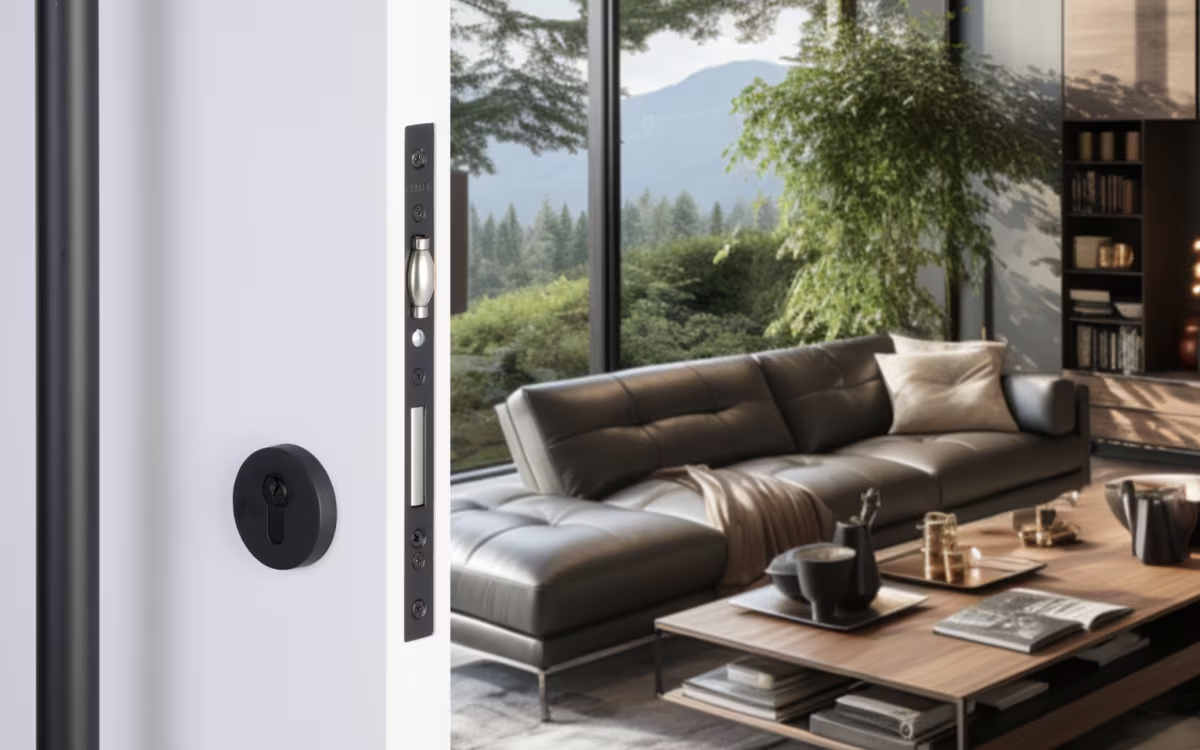

7- EUROPEAN MORTISE DEADBOLT WITH INTEGRATED ROLLER LATCH
Overview:
The European Mortise Deadbolt with Integrated Roller Latch is engineered for large, modern-style entry and pivot doors. It features a combination of a locking mortise deadbolt and a roller latch, ensuring secure and smooth operation. This system is available in configurations with either round or square deadbolts, designed to align with various door designs.
Applications:
Ideal for oversized doors, this locking mechanism enhances security while accommodating frequent access. It can be used in conjunction with a Heavy Duty Roller Latch for doors subjected to higher traffic or usage, improving both functionality and durability.

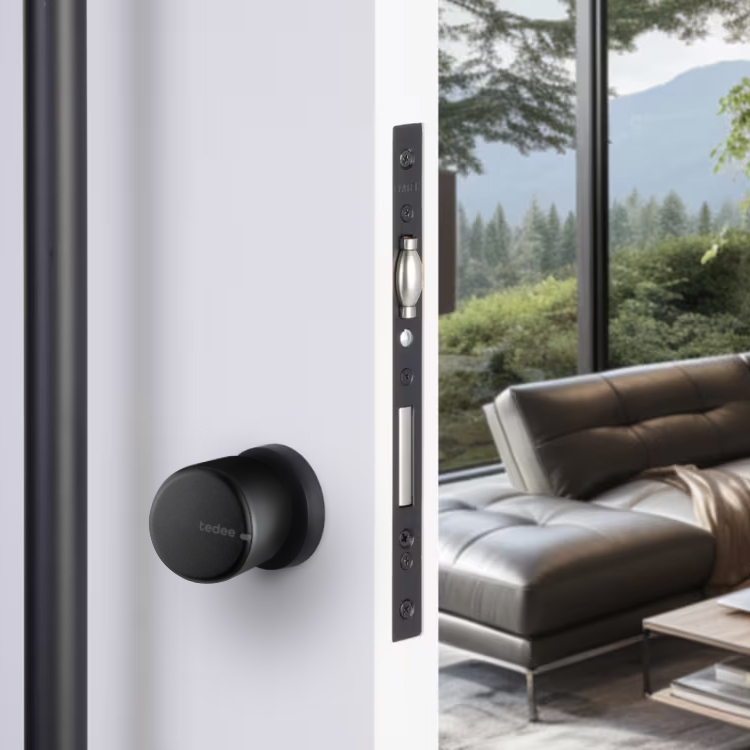

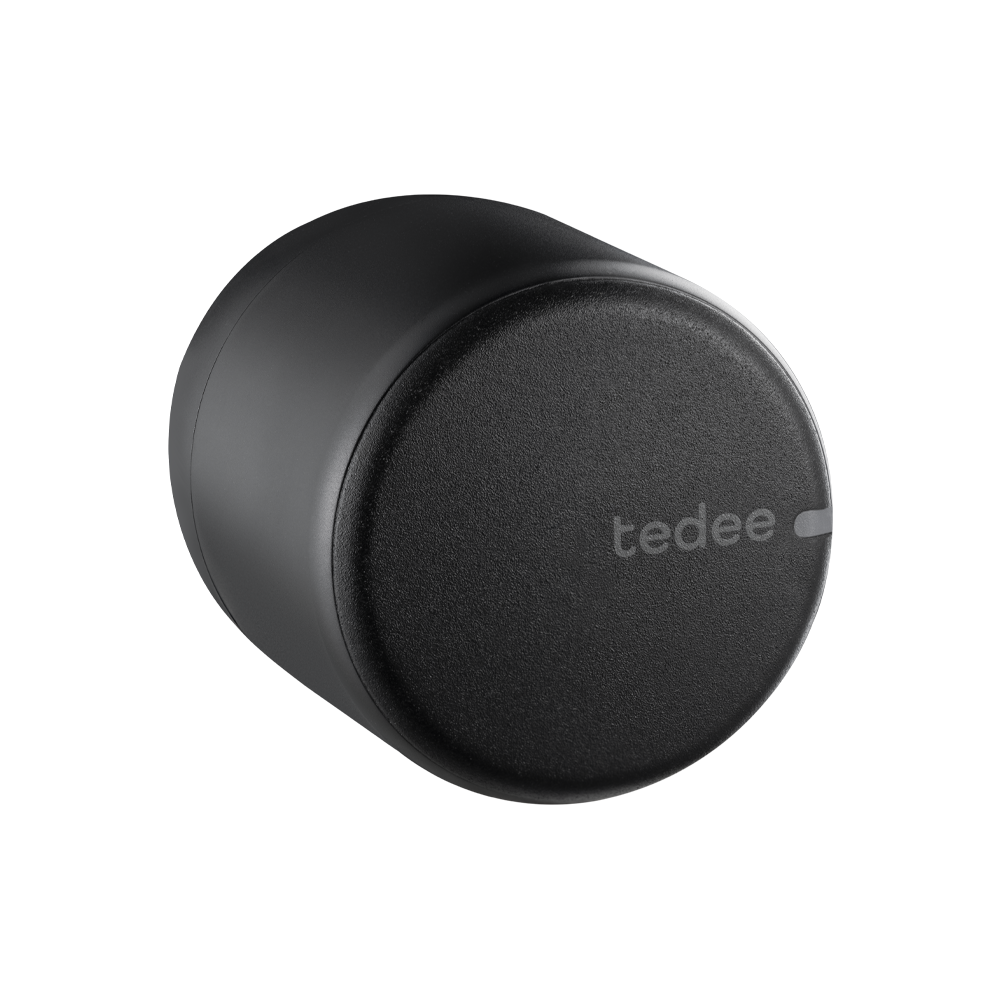

Smart Lock Compatibility: The European Mortise Deadbolt is compatible with various smart lock systems, including Tedee PRO, allowing for remote control capabilities. This integration facilitates enhanced security management and convenience, enabling door operations via smart devices.

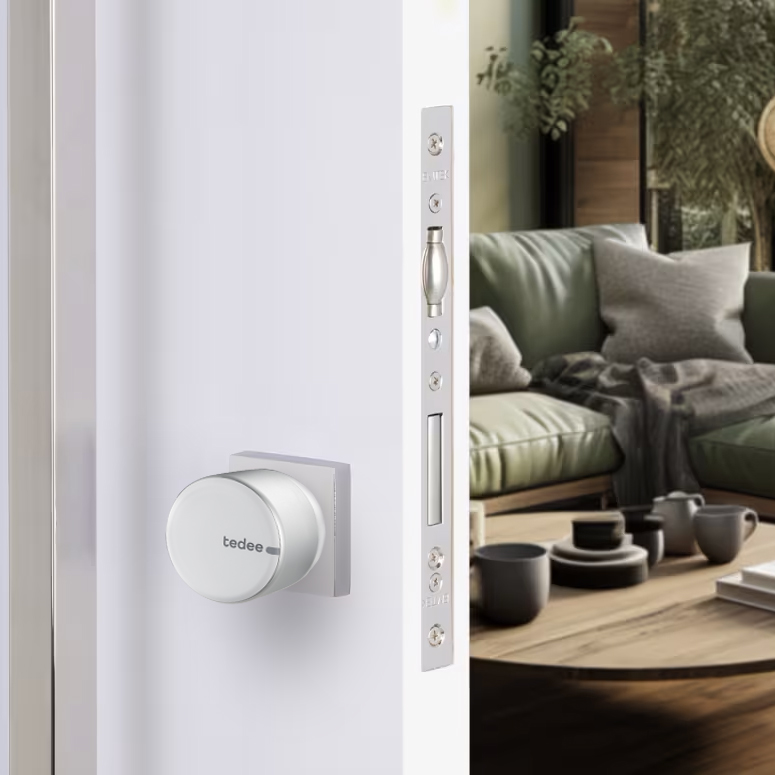

Design Compatibility: With multiple finish options such as satin brass, stainless steel, brushed stainless steel, polished stainless steel, and flat black, this deadbolt system can be coordinated with a range of door pulls and other hardware elements. These finishes ensure a consistent and appealing aesthetic across door installations, making it adaptable to various interior design styles.
