Your Step-by-Step Guide to Installing a Bifold Door with Bifold Hardware

By Aysenur Altug
May 30, 2023

We all love a home improvement project that offers both a touch of style and functionality. One such improvement is the installation of a Bifold door. Not only does it make efficient use of space, but it also gives an aesthetic appeal to any room.

In this blog post, we'll provide you with an easy-to-follow, step-by-step guide on how to install a Bifold door using Bifold hardware. By the end of this article, you'll be able to undertake this project with confidence and transform your space into something truly unique.

Step 1: Installing the Track

Start by fastening the track at the top of the opening on the header. You should use the long screws provided to ensure secure placement.

Step 2: Inserting the Top Pivot Pins

Next, you need to insert the Top Pivot Pins into pre-drilled holes on top of the door panels.

Step 3: Inserting the Top Guide Pins

Following the Top Pivot Pins, insert the Top Guide Pin into the pre-drilled holes on top of your door panels.

Step 4: Inserting the Bottom Pivot Pin

Moving to the lower part of the door, insert the Bottom Pivot Pin into the pre-drilled hole at the bottom edge.

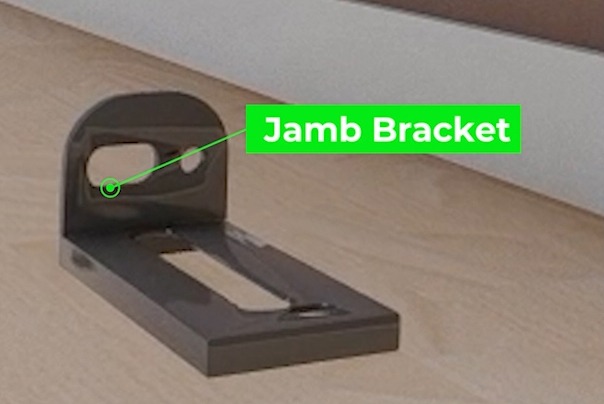

Step 5: Securing the Jamb Bracket

Now, secure the Jamb Bracket along the track on the jamb side using 1 1/2-inch screws. Ensure that you have a solid base to avoid any issues later on.

Step 6: Installing the Door Panels

Next, you need to insert the Top Pivot Pins into pre-drilled holes on top of the door panels.

Step 7: Positioning the Bottom Pivot

Next, position the Bottom Pivot into a jamb bracket on the floor. Make sure it's aligned properly for smooth operation of your Bifold door.

Step 8: Positioning the Guide Pivot

Depress the Guide Pivot and position it under the track. This is a crucial step in ensuring your door opens and closes correctly.

Step 9: Mounting the Knobs

Finally, mount the knobs at the center of the guide door, approximately 36 inches from the floor. This provides easy access and operation of your newly installed Bifold door.

By following these steps carefully, you can install a Bifold door with Bifold Hardware in no time at all. It's a simple yet satisfying DIY project that will enhance the functionality and look of your home. So roll up your sleeves, and let's get to work!
