A Guide to Divided Lite Glass Types
-
By Shayan Behjati - Jun 15, 2026
I f you’re comparing divided lite glass for an exterior door, the key difference is not just the pattern. It is how the glass is built.
This guide explains the main construction approaches—TDL, SDL, GBG, fixed grilles, and the SDL + GBG hybrid—with a focus on maintenance, authenticity, and repair expectations rather than installation steps or exact pricing.
Core divided lite glass types
Divided lites create a door glass look that reads as smaller sections within a structured grid. On doors, that effect is typically achieved in five main ways:
- TDL: individual panes separated by muntins
- SDL: grids applied to the glass surface
- GBG: grilles placed between two panes of tempered glass
- Fixed grilles: grille elements integral to the glass frame on both interior and exterior sides
- SDL + GBG hybrid: a combined approach that creates more layered depth and more closely resembles the traditional TDL look
Homeowners often choose divided lites when they want a structured, traditional window rhythm at the entry without moving into highly decorative glass patterns. The sections below explain how each type works in practice, and the comparison chart will help you narrow the best match for your priorities.
True Divided Lite (TDL)
True Divided Lite uses individual glass panes separated by muntins, so each lite is an independent piece of glass. The divisions are physicaally real rather than simulated on one continuous sheet.
- Best for:
Homeowners seeking classic divided construction and buyers who value the ability to address damage at the pane level rather than replacing an entire unit. - Maintenance and repair expectations:
TDL is typically straightforward to maintain and clean. If one pane becomes damaged, it can often be repaired or replaced without affecting the surrounding lites.
For deeper definitions and authenticity details, see the canonical TDL help page.
Simulated Divided Lites (SDL)
Simulated Divided Lites are made to resemble divided glass, but the divisions are applied to the surface of the glass rather than created with separate panes. SDL uses grid elements attached to a single sheet of glass.
- Best for:
Homeowners who want the visual rhythm of divided lites while keeping the glass as one continuous pane. - What it is not:
SDL does not use individual panes separated by muntins. The divided appearance is surface-applied rather than structurally segmented.
For a deeper breakdown of construction details and technical distinctions, see the SDL help page.

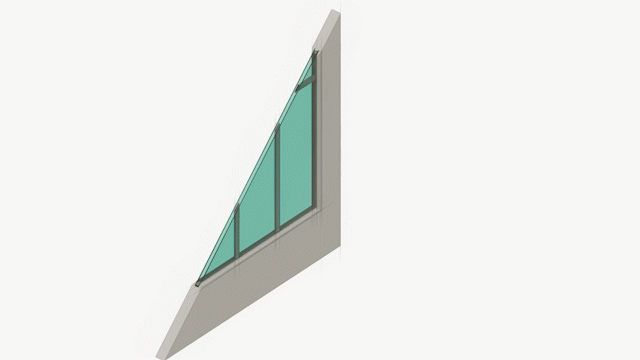

Grilles Between Glass (GBG)
Grilles Between Glass place the grille inside a sealed glass unit, between two panes of tempered glass. The divided appearance sits within the assembly rather than on the surface.
- Best for:
Homeowners who want a divided-lite look with a cleaner glass surface and less interruption on the interior and exterior faces. - Maintenance expectations:
GBG offers a sleek, easy-to-maintain surface because the interior and exterior glass faces remain uninterrupted. - Options:
GBG is available in contoured or flat profiles and in various colors, allowing you to adjust the visual tone without turning the choice into a complex pattern exercise.
For a deeper explanation of construction details and terminology, see the GBG help page.

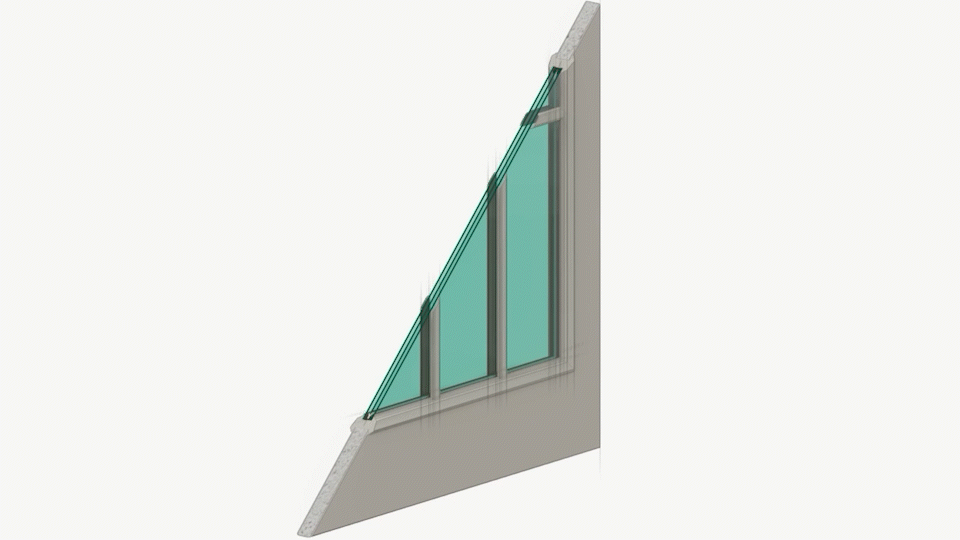

Fixed Grilles
Fixed grilles are integral to the glass frame and appear on both the interior and exterior sides. They are not positioned between panes like GBG, and they are not the same as a surface-applied SDL approach.
- Best for:
Homeowners who want a divided-lite appearance with visible grille elements on both sides of the glass and a practical replacement-oriented option. - Material note:
This type is described as crafted from polymers and designed to emulate the visual appeal of divided glass. - Practicality note:
Fixed grilles are designed to be removable or replaceable for practicality.
SDL + GBG hybrid
This hybrid approach combines Simulated Divided Lites with Grilles Between Glass in a single system. Surface-applied SDL elements work together with GBG elements positioned between two panes of tempered glass, creating layered depth that more closely approximates traditional divided construction.
- Best for:
Homeowners who want a look that more closely resembles TDL without using separate panes.
Comparison chart
Use this chart to compare the main tradeoffs at a glance, especially if you are deciding between authenticity, ease of maintenance, and repair expectations.
| Decision factor | TDL | SDL | GBG | Fixed grilles | SDL + GBG hybrid |
|---|---|---|---|---|---|
| Best for | Classic divided construction with independent panes | Divided look created through surface-attached elements | Divided look with grilles positioned between two panes of tempered glass | Divided look using integral frame grilles on both sides | TDL-like appearance achieved through combined SDL + GBG approach |
| Maintenance | Typically easy to maintain and clean | Varies by configuration | Sleek, easy-to-maintain surface | Varies by configuration | Varies by configuration |
| Cost tier | Varies by construction and specification | Varies by construction and specification | Varies by construction and specification | Varies by construction and specification | Varies by construction and specification |
| Privacy compatibility | Depends on glass selection | Depends on glass selection | Depends on glass selection | Depends on glass selection | Depends on glass selection |
| Repairability | Individual panes can often be repaired without affecting adjacent lites | Depends on construction | Depends on sealed unit configuration | Designed to be removable or replaceable for practicality | Depends on construction |
| Authenticity look | Built from individual panes separated by muntins | Emulates divided aesthetics through surface-applied grids | Clean divided look within a sealed unit | Emulates the visual appeal of divided glass | Closely resembles TDL through combined surface and between-glass depth |
| Summary Decision factor | TDL | SDL | GBG | Fixed grilles | SDL + GBG hybrid |
|---|---|---|---|---|---|
| Authenticity look | Individual panes | Surface-applied grids | Clean look inside unit | Emulates divided look | Closely resembles TDL through combined surface and between-glass depth |
| Maintenance | Easy to maintain | Varies by config | Sleekest, easiest surface | Varies by config | Varies by configuration |
| Repairability | Repairable independent panes | Depends on construction | Depends on sealed unit config | Designed to be removable/replaceable | Depends on construction |
How to choose
If you are deciding which divided lite glass type fits your exterior door, begin with how literal you want the division to be.
If you want true divided construction with physically separate panes, TDL is the clearest match. If your goal is a similar visual effect without separate panes, the hybrid approach offers the closest approximation.
If maintenance is your main priority, GBG offers the most uninterrupted surface, while TDL is also typically straightforward to maintain. For other types, maintenance expectations depend more on configuration and should be confirmed before purchase.
If you are planning ahead for repair scenarios, TDL allows individual sections to be addressed without replacing the entire unit. Fixed grilles are designed to be removable or replaceable. Other types depend more on full-unit construction.
Misconceptions and quick clarifications
- +SDL is not the same as true divided construction.
It creates a similar visual rhythm using applied elements rather than separate sections. - +GBG is not surface-mounted.
The grille sits inside the sealed unit, which is why the glass surface remains uninterrupted. - +Fixed grilles are not between glass.
They appear on both sides of the glass and are part of the frame assembly. - +Hybrid does not equal true divided glass.
It is a layered system designed to visually approximate traditional construction.
FAQ
TDL gives the most authentic result because the divisions are physically built into the glass. If you want a similar visual effect without using separate panes, the hybrid approach is the closest match.
GBG is typically the easiest to maintain because both glass faces remain uninterrupted. TDL is also straightforward to maintain, but it involves multiple individual panes.
GBG provides the cleanest surface since the grille sits inside the sealed unit rather than on the glass faces.
TDL is the clearest option if repair flexibility is important, since individual sections can often be addressed without replacing the entire unit.
This type is described as removable or replaceable, which can make it more practical in certain maintenance situations.
Yes. A hybrid configuration is designed to create a more layered, traditional appearance while using a single insulated glass unit.
No. This page focuses on construction approaches. For privacy levels and decorative combinations, explore the related resources below.
